MLT Series Degerminator

MLT Series Degerminator

Brief Introduction:

The machine for corn degerming, Equipped with several highly advanced techniques, comparing with similar machine from overseas, MLT series of degerminator prove to be best in peeling and de-germinating process.


Product Detail

Product Tags

Product video

Product Description

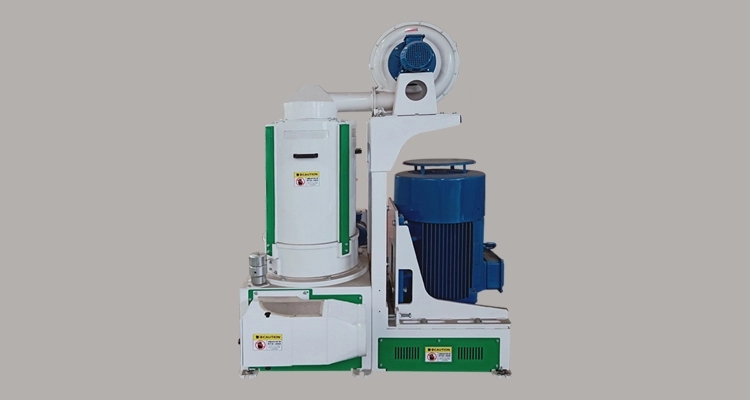

MLT Series Degerminator

MLT Series Degerminator

The machine for corn degerming
Equipped with several highly advanced techniques, comparing with similar machine from overseas, MLT series of degerminator prove to be best in peeling and de-germinating process.

Operation and Maintenance
The material falls onto the guide plate from inlet and cover evenly on the entire width of the upper sieve due to the vibratory action of the machine. The combined action of the vibration and air flow make the material on the upper sieve classified automatically according to its specific gravity and granular size. Light material become overtails of the upper sieve and discharged out of the machine from the machine tail. More light material like straw and dust is taken away from aspiration outlet.
Heavy material together with stones and sand falls onto the lower sieve through the upper sieve. As the action of the machine vibration, air flow and friction, the heavy material moves towards the tail of the machine and discharged from the tail outlet while sand and stones move towards the head of the machine and discharged from the stone outlet. Through the observation windows, operator can directly observe the effect of classifying and de-stoning.

Hc2fba9b423e94f5293dfcd68a3af26cbc_jpg__webp

Material and Special Process

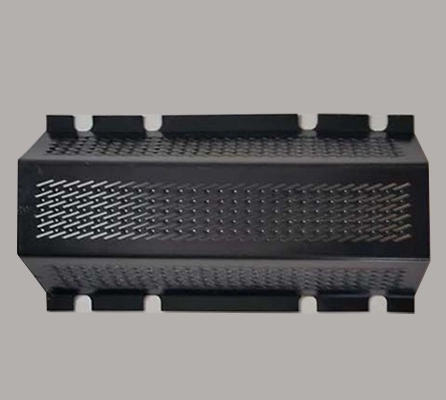

Main parts, especially those easy to wear out, strictly follow the international standards, reliable and durable. Screen is a consumable part, easiest to wear out. Generally, the screen is made of Q195 cold rolled steel plate, without heat treatment or other process, which makes the screen very weak. Our screen has most advanced technology of mechanical processing, apart from the popular cold stamping, we also do Nitriding heat treatment and electroplating by Ni-Cr alloy, which make the screen quite stronger than other type, and give it a longer work life.

Key Parts and Performance
The iron roller is the key part of the degerminator, which is designed in two-split type. The two halves are not the same, easy for installation and replacement, and when one half breaks down, you replace the broken half, do not have to replace the whole, economical; The roller is specially slotted, and the type and location of the slots are specially designed for different grains, when working, cold air blowing through the slots, helping bring out peeled bran and cooling down the material inside; Three sets of resistance plate are evenly fixed outside the roller, and this part plays an important role in opening the grain bran in the first place, the effects of which can be adjusted, and the two-split type is easier for the resistance plates to fix; The gap between the roller and the frame highly affects the material pressure inside the machine, and the pressure highly affects the machine performances. The highly advanced key parts lead to a high performance for the machine, peeling and de-germinating grains efficiently and bringing least broken grains in the meantime.

Technical Parameter List:
TypeParameter Shape Size Power Capacity Aspiration Volume Speed of mainshaft Weight
L x W x H (mm) KW t/h m3/min r/min kg
MLT21 1640x1450x2090 37-45 3-4 40 500 1500
MLT26 1700x1560x2140 45-55 5-6 45 520 1850
