Flour Milling Equipment Two Way Valve

Flour Milling Equipment Two Way Valve

Brief Introduction:

The machine for changing the material conveying direction in pneumatic conveying system.Widely used in pneumatic conveying line of flour mill, feed mill, rice mill and so on.


Product Detail

Product Tags

Product video

Product Description

Flour Milling Equipment Two Way Valve

Flour Milling Equipment Two Way Valve

The machine for changing the material conveying direction in pneumatic conveying system.Widely used in pneumatic conveying line of flour mill, feed mill, rice mill and so on.

Two_Way_Valve  Two_Way_Valve

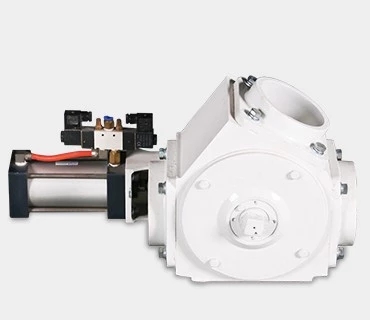

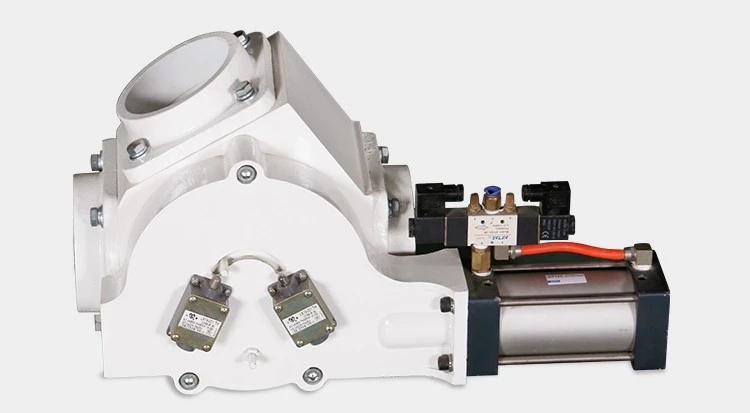

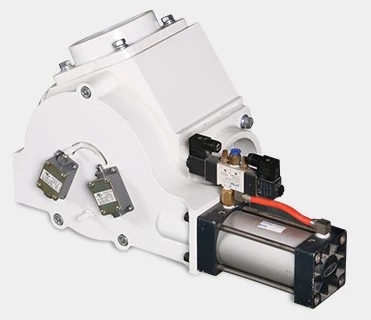

The two way valve mainly comprises grey casting iron housing, diverter ball valve, and pneumatic driving parts. The materials are fed in the machine and the way is selected by the diverter ball valve. As a pneumatic valve, this device is driven by the pneumatic cylinder. In modern flour factories, this kind of valve has been widely adopted for material transfer.

Feature
1. The casing and spool are made of nodular cast iron ensuring no deformation.
2. The sealing flanges are adopted for our two-port valve to ensure that no leakage will have occurred in the blowing line.
3. The imported pneumatic parts including cylinder and two way solenoid valve are optional.
4. The valve spool is driven by the cylinder precisely and flexibly.
5. By two limit switches effectively and accurately sending position switching signal, the valve can be controlled automatically.



Two_Way_Valve

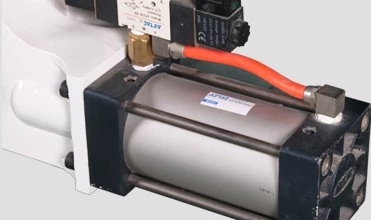

The valve core is driven by the cylinder precisely and flexibly.

Two_Way_Valve

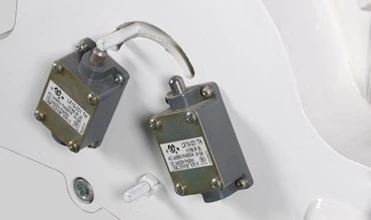

The valve can be automatically controlled by the precise and effect position switching signals which was transmitted by the two limit switches.

Two_Way_Valve

The valve can be automatically controlled by the precise and effect position switching signals which was transmitted by the two limit switches.



Technical Parameters List:
Type Inner Diameter (mm) Angle of the Pipes(°) Max  Temperture(℃)

Working

Pressure(KPa)

Cylinder
Diameter/Journey (mm) Air Pressure (MPa)
THFX6.5x2 65 60 100 50-100 50/100
THFX8x2 80 50/100 0.4-0.6
THFX10x2 100 50/100
THFX12x2 125 80/125
THFX15x2 150 100/125
THFX18x2 175 100/125
THFX20x2 200 125/175
THFX25x2 250 125/200
