Brief Introduction:

As a grain milling machine, our SFSP series hammer mill can smash various kinds of granular materials like corn, sorghum, wheat, beans, crushed soy bean pulp cake, and so on. It is suitable for industries like fodder manufacturing and medicine powder production.


Product Detail

Product Tags

Product video

Product Description

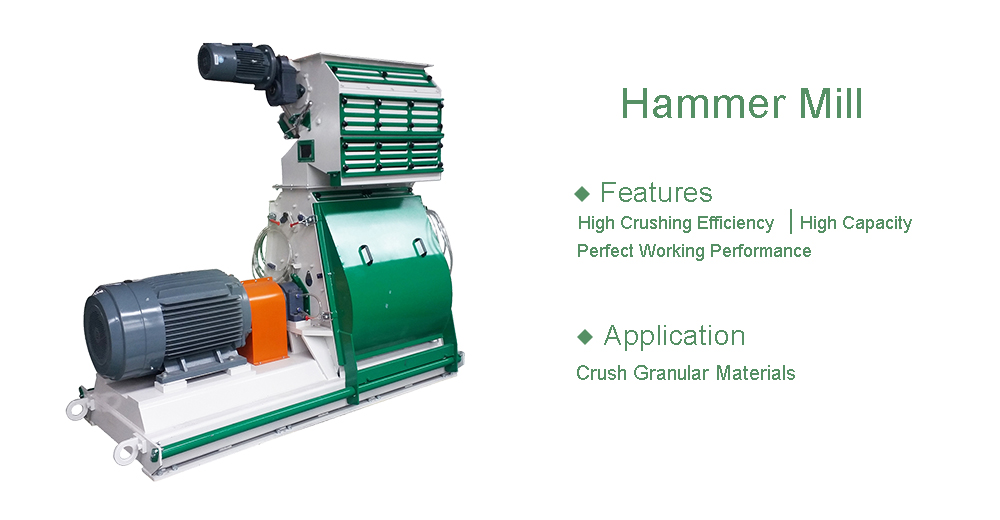

Hammer Mill-1

Technical Parameter List

Type
Capacity Main Shaft Speed Rotor Diameter Chamber Width Power
  t/h r/min mm mm KW
SFSP56x36 2.5-3 2900 560 360 18.5/22
SFSP56x40 4-5 2900 560 400 30/37
SFSP112x30 7.5-10.5 2900 1120 300 55/75
SFSP112x40 12.5-16 2900 1120 400 90/110
Hammer Mill-2

· Perfect Working Performance
High-precise dynamic balancing ensures running stably, lower noise and perfect working performance.
· Long Time Using Duration
The rotor rotating in forward and backward direction can prolong the service life of wearing parts.
· Excellent Smashing Efficiency
The special smashing solution has an excellent smashing efficiency which is 45%-90% higher than that of common mills.
· High Capacity
The ventilation system is properly adjusted so that the material can go through the sieve quickly, the production capacity is greatly enhanced.

Crush Granular Materials

The Hammer mill can handle small size particles with a diameter of 1mm or even 0.8mm, while the blocking phenomenon is greatly reduced. It is suitable for producing aquatic feed which is in relatively smaller size.  To crush grain like corn, sorghum, wheat, and other granular material. It is suitable for fine grinding in feed, grain and food industries.

Grain211209
微信截图_20211223141907

Working principle
Guided by a guiding plate, the material enters into the grinding chamber. By the impacting effect of high-speed running hammers and the friction effect of the screen, the particles size of the material will be smaller gradually until it can pass through the screen. Finally, the material is discharged out from the outlet by centrifugal force and air aspiration.

Grain-Hammer-Mill-3

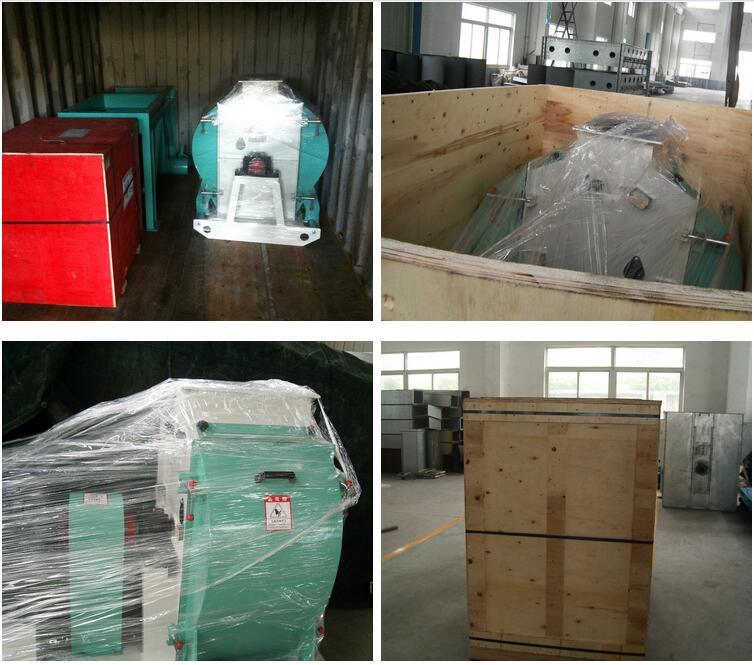

Packing & Delivery

>
