Brief Introduction:

Flour mill machinery TLSS series tubular screw conveyor is mainly used for quantitative feeding in flour mill and feed mill.


Product Detail

Product Tags

Product video

Product Description

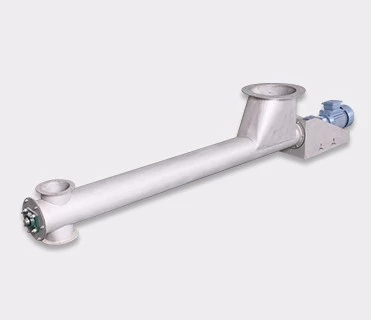

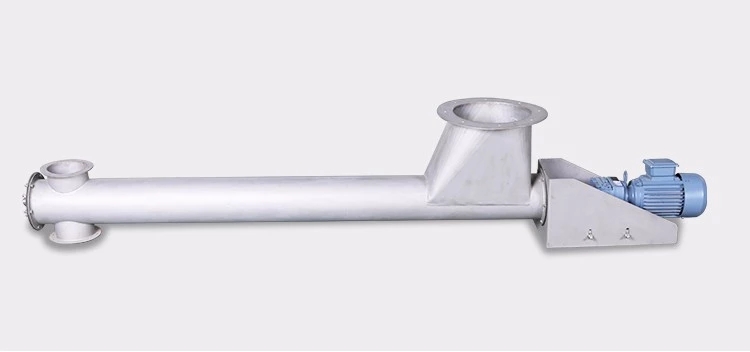

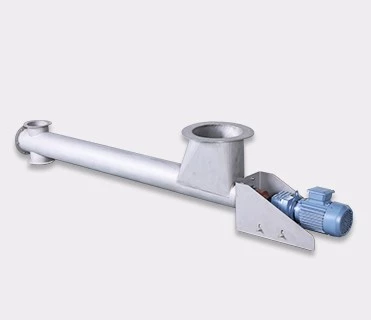

Flour Mill Machinery Tubular Screw Conveyor

Flour Mill Machinery Tubular Screw Conveyor

Application
Flour mill machinery TLSS series tubular screw conveyor is mainly used for quantitative feeding in flour mill and feed mill.

Flour Mill Machinery Tubular Screw Conveyor  Flour Mill Machinery Tubular Screw Conveyor

Features
1)Adopts low speed shaft or chain drive, different screw interval arrangement structure.
2)Simple structure, convenient maintenance, good quantitative feeding, these features greatly improve the batching accuracy.
3)High conveying efficiency.
4)The diameter of the screw is small and the rotary speed is high. The material can be conveyed and discharged safely and conveniently.
5)Flexible installation.
6)The tube is made of high quality mild steel, and both horizontal and inclined type can continuously convey material. It can be directly connected with other machines without base, which can make full use of space, and easy to move and disassemble.
7)Bearings don’t need lubrication. Easy and convenient to maintain.
8)Good sealing performance, no leakage.
9) Special gear motor, advanced design, low noise.

Flour Mill Machinery Tubular Screw Conveyor

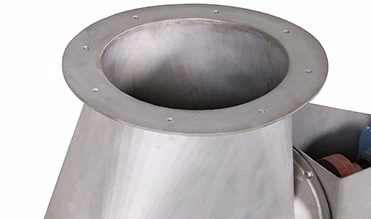

The material inlet is large enough to reduce the material blocking in the bin and make the material discharge smoothly.

Flour Mill Machinery Tubular Screw Conveyor

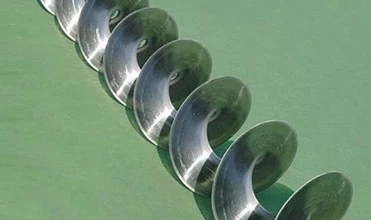

Complete Screw blade: one side of the screw blade clings to the shaft, forming a complete screw surface, and have a good conveying effect.

Flour Mill Machinery Tubular Screw Conveyor

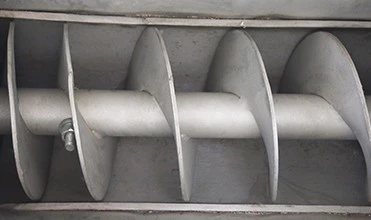

Different screw interval arrangement structure of material inlet blade: Better regulation of material flow volume.

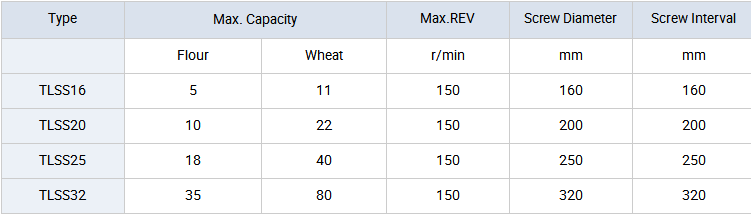

Technical Parameter List:

Flour Mill Machinery Tubular Screw Conveyor

Compact Corn Mill4
Compact Corn Mill3
Compact Corn Mill2

Packing & Delivery

Compact Corn Mill5
Compact Corn Mill6
Compact Corn Mill7
Compact Corn Mill8
Compact Corn Mill9
Compact Corn Mill10
