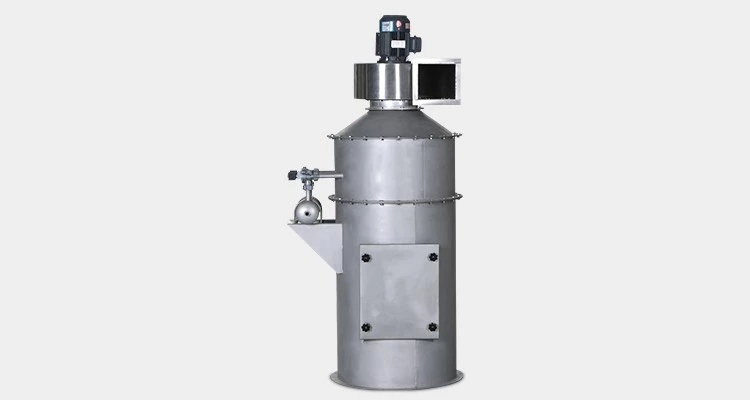

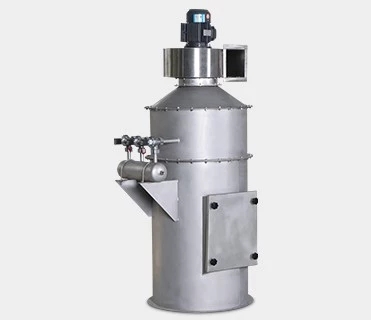

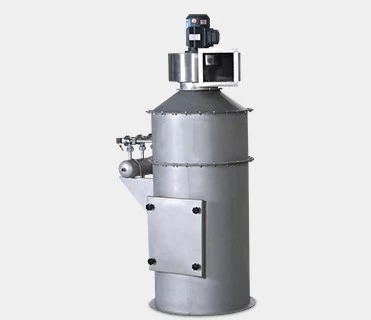

Inserted High Pressure Jet Filter
Brief Introduction:
This machine is used at top of silo for dust removal and small air volume single point dust removal.It is widely used in flour mills, warehouses and mechanized grain depots.
Product Detail
Product Tags
Product Description
Inserted High Pressure Jet Filter for flour mills
Features

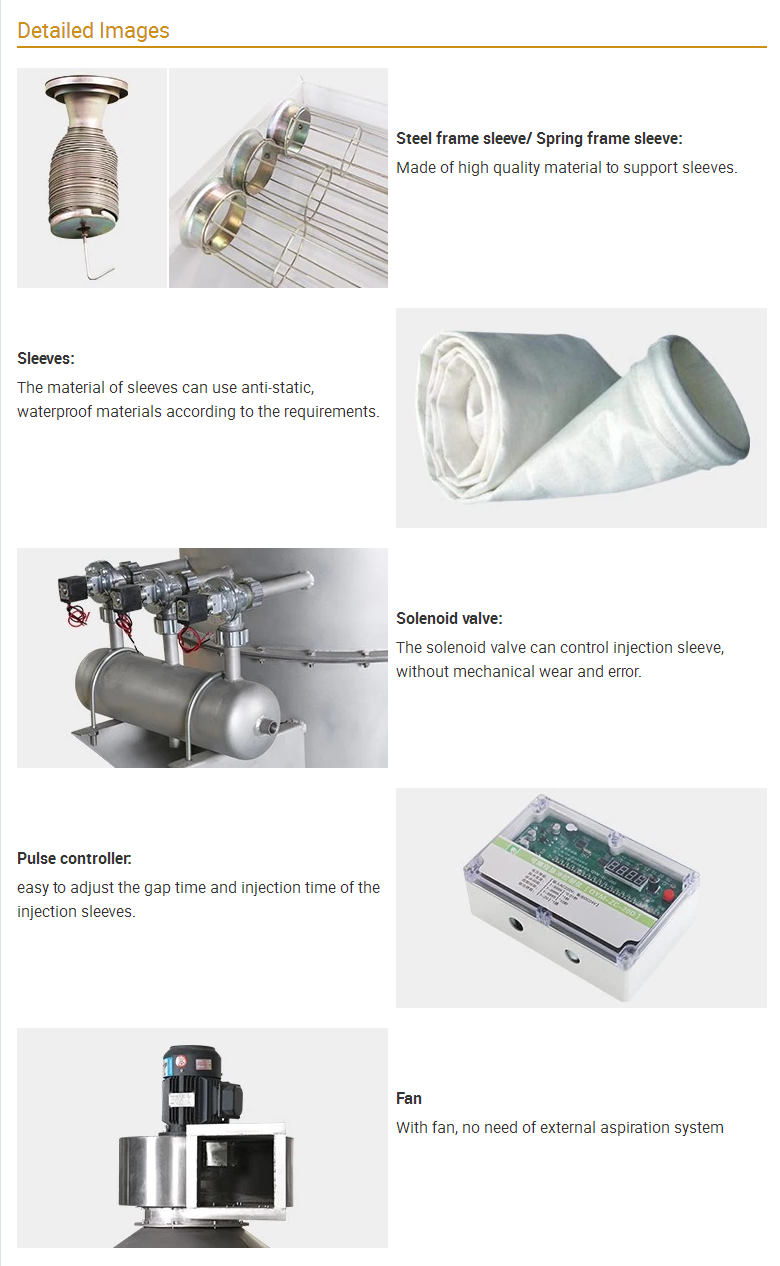

1) Optimized structure design of gas package with stronger pressure resistance, no leakage
2) The solenoid valve controls injection sleeves, without mechanical wear and error.
3) With fan, small size, and good dust removal effect.
4) The dust can be handled locally and the environment can be protected. The separated dust can be transported back locally.
Technical Parameter List：
| Type | Sleeves Nos(pcs) | Sleeves Length(mm) | Sleeves Area(m2) | Air Volume(m3/h) | Power(kw) |
| TCR-4/8 | 4 | 800 | 1.24 | 223-298 | 1.1 |
| TCR-4/12 | 4 | 1200 | 1.86 | 334-447 | 1.1 |
| TCR-6/8 | 6 | 800 | 1.86 | 334-447 | 1.1 |
| TCR-6/12 | 6 | 1200 | 2.76 | 496-663 | 1.1 |
| TCR-9/8 | 9 | 800 | 2.8 | 504-672 | 1.5 |
| TCR-9/12 | 9 | 1200 | 4.14 | 745-994 | 1.5 |
| TCR-9/16 | 9 | 1600 | 5.76 | 1036-1383 | 1.5 |
| TCR-16/12 | 16 | 1200 | 6.88 | 1238-1652 | 2.2 |
| TCR-16/18 | 16 | 1800 | 10.24 | 1843-2458 | 2.2 |
| TCR-16/24 | 16 | 2400 | 13.76 | 2476-3303 | 2.2 |
