Brief Introduction:

Plane rotary screen is mainly used for cleaning or grading raw materials in milling, feed, rice milling, chemical industry and oil extraction industries. By replacing different meshes of sieves, it can clean impurities in wheat, corn, rice, oil seed and other granular materials.
The screen is wide and then flow is big, cleaning efficiency is high, flat rotation movement is stable with low noise. Equipped with aspiration channel, it performs with clean environment.


Product Detail

Product Tags

Product video

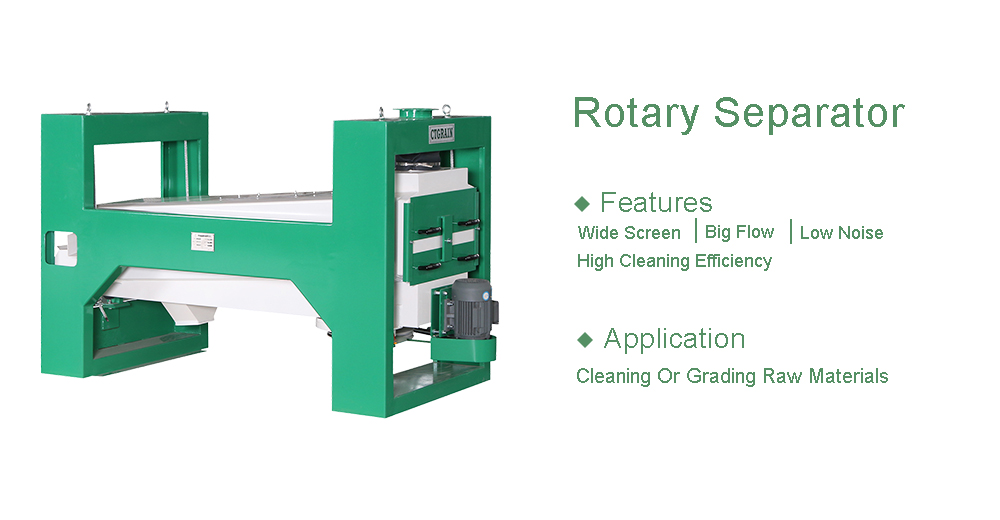

Rotary Separator1

Technical Parameter List:

Type Capacity Power Rotating speed Aspiration Volume Weight Screen rotation semidiameter Size
t/h kW rpm m3/h kg mm mm
TQLM100a 6~9 1.1 389 4500 630 6~7.5 2070×1458×1409
TQLM125a 7.5~10 1.1 389 5600 800 6~7.5 2070×1708×1409
TQLM160a 11~16 1.1 389 7200 925 6~7.5 2070×2146×1409
TQLZ200a 12~20 1.5 396 9000 1100 6~7.5 2070×2672×1409

Clean Impurities

Plane rotary screen is mainly used for cleaning or grading raw materials in milling, feed, rice milling, chemical industry and oil extraction industries. By replacing different meshes of sieves, it can clean impurities in wheat, corn, rice, oil seed and other granular materials.

Rotary Separator2
Rotary Separator3

Sieve plate:
The sieve plate is made of high quality steel plate, its hole size is designed according to per processing need, easy for assembling.

Ball cleaner.
In screening process, sieve cleaning is important to promise effective grading. This machine adopts medium hardness Rubber Ball cleaning with low blockage rate.

Observation window
The upper observation window is convenient to check and clean the sieve surface;

Transmission part:
The motor is fixed under the bottom part of the machine, and the pulley is driven by the belt, and the fan block in the pulley can increase or decrease the phase to adjust the rotary diameter of the sieve body.



Main structure and working principle

The equipment consists of frame, sieve, drawer-type sieve frame, single shaft vibrator, electric motor, suspender rod and other components.
The main component of rotary screen is the inclined screen surface , and every point on the sieve makes plane circular motion, and the material slide down in spiral by gravity on the sieve surface, and with the automatic grading property of the material, different sizes of impurities from the raw material are separated.
