Brief Introduction:

TCXT Series tubular Magnet for grain cleaning, To remove steel impurity.


Product Detail

Product Tags

Product Description

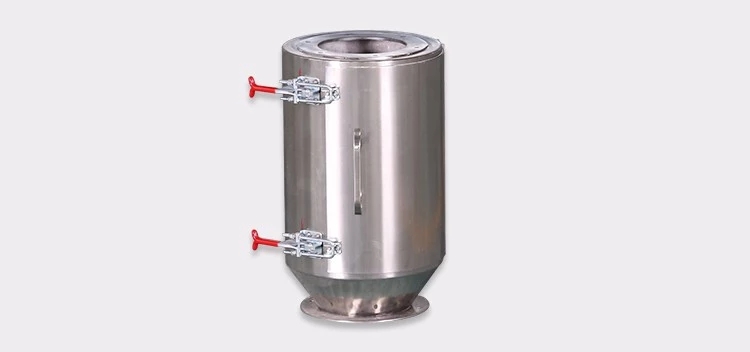

TCXT Series Tubular Magnet

TCXT Series Tubular Magnet

TCXT Series tubular Magnet for grain cleaning, To remove steel impurity.

TCXT Series Tubular Magnet  TCXT Series Tubular Magnet

As an important food processing equipment and fodder production equipment supplier, we can provide premium quality tubular magnetic separator for separating ferrous contents from granular and pulverulent materials.

Our tubular magnetic separator comes with a piece of powerful permanent magnet, which can remove metal impurities with a high efficiency. You can directly install it in the corresponding down spout.

In practice, this magnetic separating facility has been used in flour mill, fodder manufacturing factory, edible oil factory, and so on.

Working principle
The working pinciple of tubular magnet used in flour mill plant is as below: when the iron impurities in the raw material run around the magnet, the iron impurities are magnetized, and adhere on surface of magnet, thus the iron impurities in the raw material can be removed.

Features
1. High capacity.
2. Easy operation and maintenance.

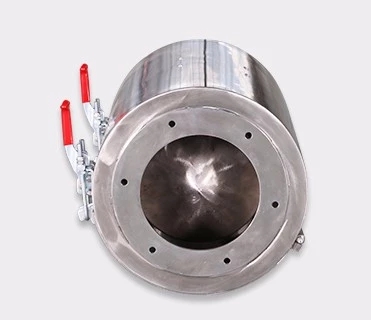

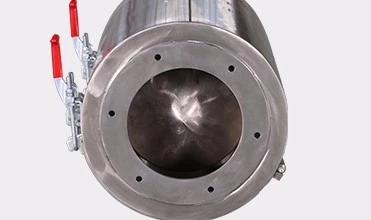

3. The spout magnet cylindrical casting of the tubular magnetic separator is made of stainless carbon steel with counter flanges.

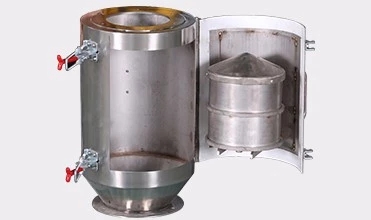

4. A magnet core is fastened onto the hinged door for easy cleaning purposes.The magnet core is made of permanent magnetic rings.
5. The spout magnet is dustproof and waterproof, so it can work on normal climatic and environmental conditions.
6. The iron separation efficiency of the tubular magnetic separator is greater than 99%

TCXT Series Tubular Magnet

Permanent magnet:  High quality stainless steel non-magnetic tube body has beautiful appearance. The equipment is configured with two magnetic tower which  magnetic field are larger than 3500 GS. After through high-performance permanent magnets which was arranged specially, iron removal efficiency ≥ 99%.

TCXT Series Tubular Magnet

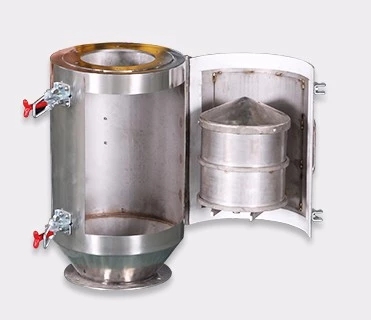

No need for power:  The magnetic tower is fixed on the door, and rotates out with the door which is facilitate to clean.

TCXT Series Tubular Magnet

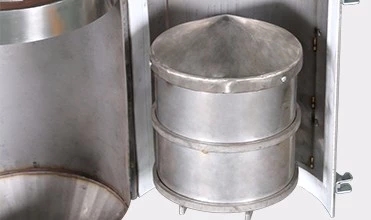

Block Ring:  Permanent magnet surface also has a block ring. It can block iron impurity from washing away by material when the absorption of iron impurities is little.
